Sheet Metal Leveling & Flattening Machine

Hydraulic Precision Leveler for efficient metal sheet flattening and stress correction. Customized by material thickness and width, manufactured directly by ZHONGAN.

Model:
Y32
Brand:
Zhongan Machinery
Roller Diameter (mm):
Customizable
Width (mm):
300, 500, 1000, 1300, 1600, 2100, 2600 etc. (customizable according to product requirements)
Maximum Plate Thickness:
80.0mm
Leveling Speed:
0-10m/min

Quantity:
Availability:





Inquire

Leveler Description

Specifications

Catalogue

FAQ

Sheet Metal Leveling & Flattening Machine Description：

Parameters of Sheet Metal Leveling & Flattening Machine

Roller diameter (mm): Customizable

Width (mm): 300, 500, 1000, 1300, 1600, 2100, 2600 etc. (customizable according to product requirements)

Number of rollers: Depending on the model

Leveling speed: 0-10m/min

Leveling accuracy: ≤ 0.3mm/㎡（final accuracy subject to equipment testing)

Applicable objects: coils, sheets, flat parts, mirror sheets, etc.

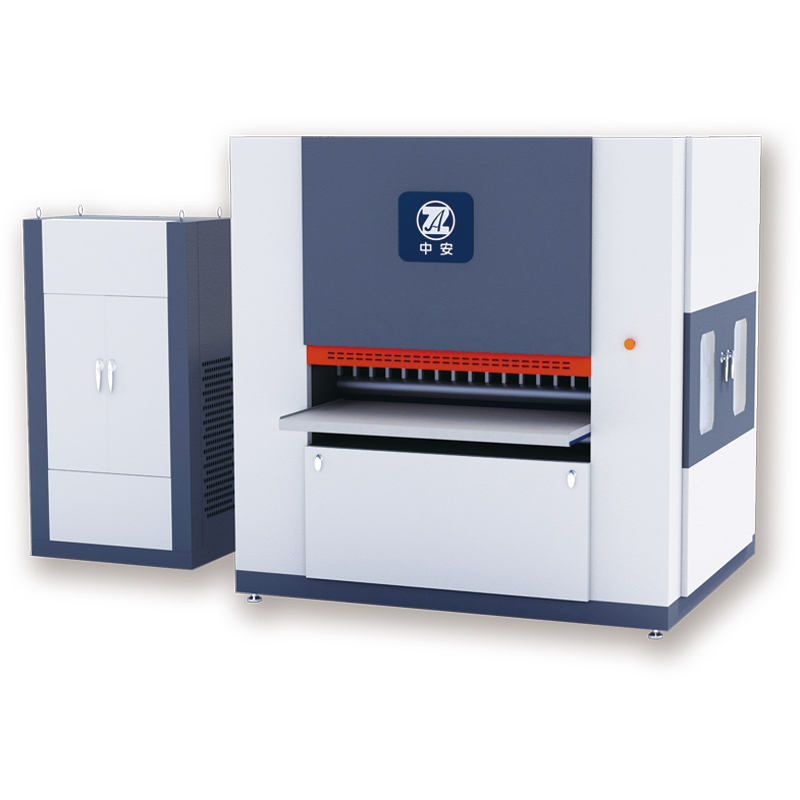

Sheet Metal Leveling & Flattening Machine - Zhongan

Sheet Metal Leveling & Flattening Machine Specifications：

Sheet Metal Leveling & Flattening Machine (Material Q235/Yield Strength 235MPa)
Series	Roller Diameter	Width	Roller Number
10 Series	Φ10mm	160/300/500	31
20 Series	Φ20mm	160/300/500	31
32 Series	Φ32mm	300/500/1000/1300/1600	23
40 Series	Φ40mm	500/1000/1300/1600	23
50 Series	Φ50mm	500/800/1300/1600/2100	23
63 Series	Φ63mm	500/800/1300/16000/2100	21
80 Series	Φ80mm	500/1000/1300/1600/2100/2600	19
100 Series	Φ100mm	500/1000/1300/1600/2100/2600	17
125 Series	Φ125mm	500/1100/1300/1600/2100/2600	15
160 Series	Φ160mm	500/1100/1300/1600/2100/2600	13
200 Series	Φ200mm	1300/1600/2100/2600/3100	11
300 Series	Φ300mm	1300/1600/2100/2600/3100	9
