16 Series Hydraulic Precision Leveler Supplier

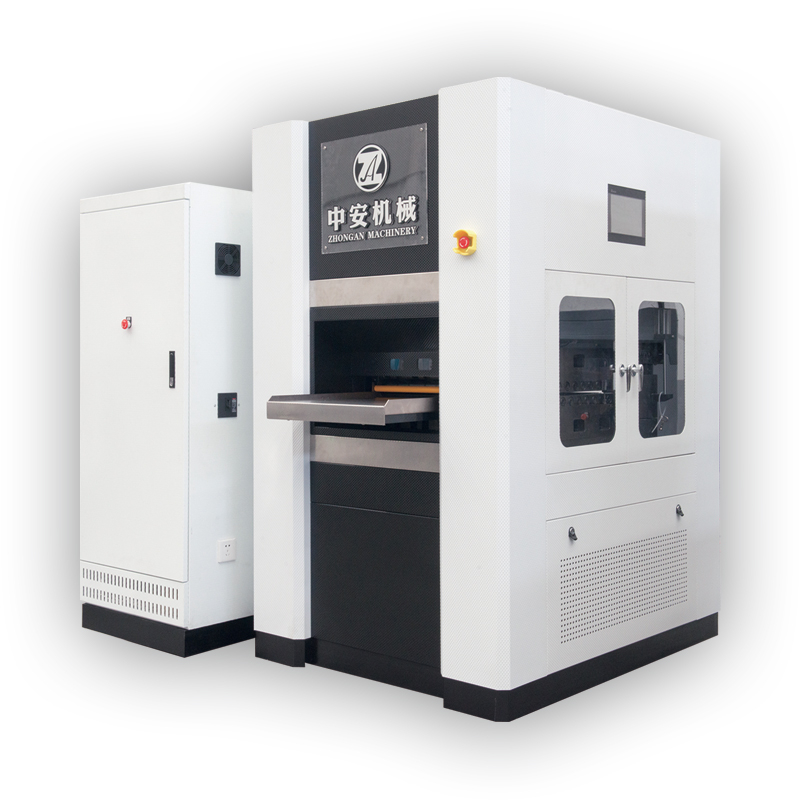

16 Series Hydraulic Precision Leveler

16 Series Hydraulic Precision Leveler - Zhongan. Ideal for ultra-thin metal sheet leveling. Customizable per sheet width, precision, and efficiency. Direct manufacturer.

Model:
Y16
Brand:
Zhongan Machinery
Roller Diameter (mm):
Φ16mm
Width (mm):
160, 300, 500, etc. (customizable according to product requirements)
Maximum Plate Thickness:
1.2mm
Leveling Speed:
0-10m/min

Quantity:
Availability:





Inquire

Leveler Description

Specifications

Catalogue

FAQ

16 Series Hydraulic Precision Leveler Description：

Parameters of 16 series leveling machines (suitable for ultra-thin materials)

Roller diameter (mm): Φ16mm

Width (mm): 160, 300, 500, etc. (customizable according to product requirements)

Number of rollers: upper 15 + 16 lower = 31 rollers

Rated plate thickness for full width: 0.2-0.6mm

Maximum plate thickness : 1.2mm

Minimum leveling length: 32mm (can not below twice of the roller diameter)

Leveling speed: 0-10m/min

Leveling accuracy: ≤ 0.3mm/㎡（final accuracy subject to equipment testing)

Applicable objects: coils, sheets, flat parts, mirror sheets, etc.

16 Series Hydraulic Precision Leveler - Zhongan

16 Series Hydraulic Precision Leveler Specifications：

Table for Leveled Width Range of 16 Series(Material Q235/Yield Strength 235MPa)
Thickness\Width	16-160-31	16-300-31	16-500-31
0.2-0.6	160	300	500
0.8	120	225	375
1.0	96	180	300
1.2	80	150	250
