40 Series Hydraulic Precision Leveler Manufacturer

40 Series Hydraulic Precision Leveler

40 Series Hydraulic Precision Leveler - Zhongan. Designed for efficient metal sheet leveling. Customizable by sheet width for precision and high performance. Made by the source manufacturer.

Model:
Y40
Brand:
Zhongan Machinery
Roller Diameter (mm):
Φ40mm
Width (mm):
500, 1000, 1300, 1600, etc. (customizable according to product requirements)
Maximum Plate Thickness:
6.0mm
Leveling Speed:
0-10m/min

Quantity:
Availability:





Inquire

Leveler Description

Specifications

Catalogue

FAQ

40 Series Hydraulic Precision Leveler Description：

Parameters of 40 series leveling machines (suitable for thin materials)

Roller diameter (mm): Φ40mm

Width (mm): 500, 1000, 1300, 1600, etc. (customizable according to product requirements)

Number of rollers: upper 11 + 12 lower = 23 rollers

Rated plate thickness for full width: 0.6-2.0mm

Maximum plate thickness : 6.0mm

Minimum leveling length: 80mm (can not below twice of the roller diameter)

Leveling speed: 0-10m/min

Leveling accuracy: ≤ 0.3mm/㎡（final accuracy subject to equipment testing)

Applicable objects: coils, sheets, flat parts, mirror sheets, etc.

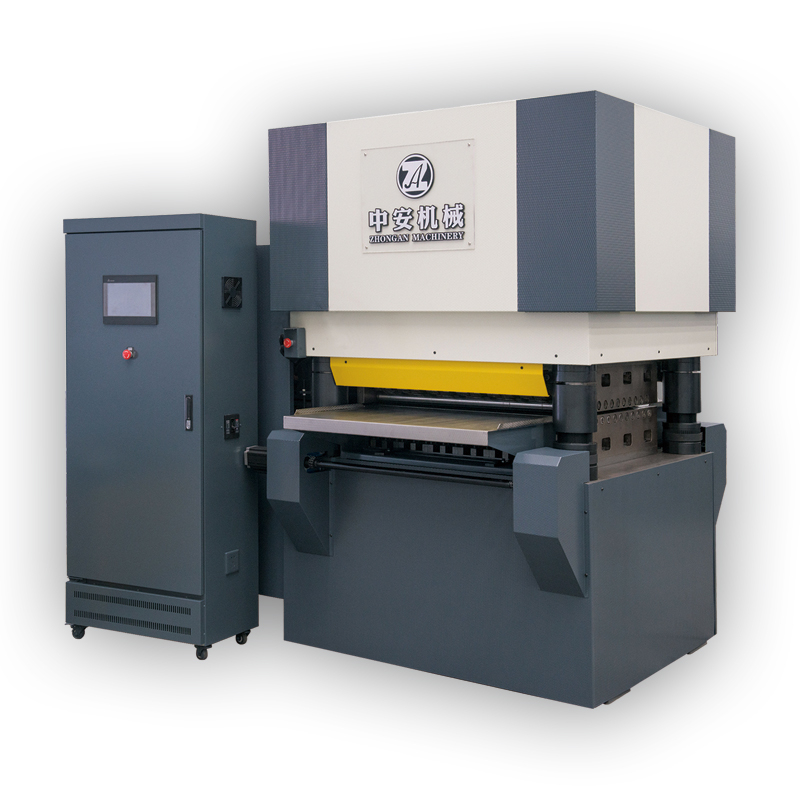

40 Series Hydraulic Precision Leveler - Zhongan

40 Series Hydraulic Precision Leveler Specifications：

Table for Leveled Width Range of 40 Series(Material Q235/Yield Strength 235MPa)
Thickness\Width	40-500-23	40-1000-23	40-1300-23	40-1600-23
0.6-2.0	500	1000	1300	1600
3.0	330	660	860	1060
4.0	250	500	650	750
5.0	200	400	480	550
6.0	160	280	360	450
