32 Series Hydraulic Precision Leveler Manufacturer

32 Series Hydraulic Precision Leveler

32 Series Hydraulic Precision Leveler - Zhongan. Perfect for metal sheet leveling. Customizable for sheet width, offering precision and high performance. Direct from the manufacturer.

Model:
Y32
Brand:
Zhongan Machinery
Roller Diameter (mm):
Φ32mm
Width (mm):
300, 500, 1000, 1300, 1600, etc. (customizable according to product requirements)
Maximum Plate Thickness:
3.0mm
Leveling Speed:
0-10m/min

Quantity:
Availability:





Inquire

Leveler Description

Specifications

Catalogue

FAQ

32 Series Hydraulic Precision Leveler Description：

Parameters of 32 series leveling machines (suitable for thin materials)

Roller diameter (mm): Φ32mm

Width (mm): 300, 500, 1000, 1300, 1600, etc. (customizable according to product requirements)

Number of rollers: upper 11 + 12 lower = 23 rollers

Rated plate thickness for full width: 0.5-1.5mm

Maximum plate thickness : 3.0mm

Minimum leveling length: 64mm (can not below twice of the roller diameter)

Leveling speed: 0-10m/min

Leveling accuracy: ≤ 0.3mm/㎡（final accuracy subject to equipment testing)

Applicable objects: coils, sheets, flat parts, mirror sheets, etc.

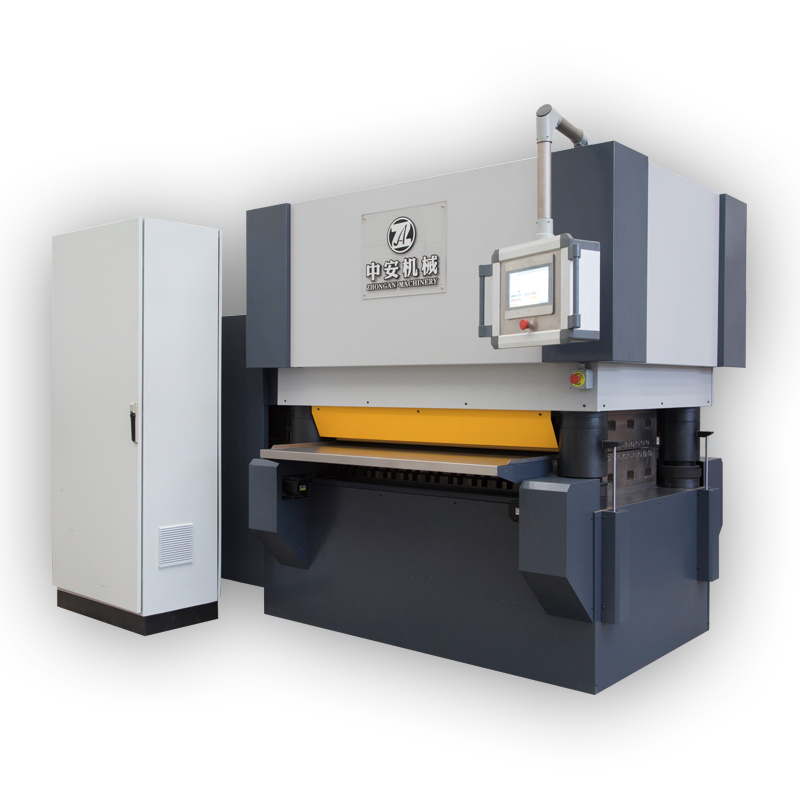

32 Series Hydraulic Precision Leveler - Zhongan

32 Series Hydraulic Precision Leveler Specifications：

Table for Leveled Width Range of 32 Series(Material Q235/Yield Strength 235MPa)
Thickness\Width	32-300-23	32-500-23	32-1000-23	32-1300-23	32-1600-23
0.5-1.5	300	500	1000	1300	1600
2.0	225	375	750	975	1000
2.5	150	250	500	700	800
3.0	110	180	400	450	550
