25 Series Hydraulic Precision Leveler Factory

25 Series Hydraulic Precision Leveler

25 Series Hydraulic Precision Leveler - Zhongan. Designed for ultra-thin metal sheet leveling. Customizable based on sheet width, precision, and high performance. Direct from the manufacturer.

Model:
Y25
Brand:
Zhongan Machinery
Roller Diameter (mm):
Φ25mm
Width (mm):
160, 300, 500, etc. (customizable according to product requirements)
Maximum Plate Thickness:
2.0mm
Leveling Speed:
0-10m/min

Quantity:
Availability:





Inquire

Leveler Description

Specifications

Catalogue

FAQ

25 Series Hydraulic Precision Leveler Description：

Parameters of 25 series leveling machines (suitable for ultra-thin materials)

Roller diameter (mm): Φ25mm

Width (mm): 160, 300, 500, etc. (customizable according to product requirements)

Number of rollers: upper 15 + 16 lower = 31 rollers

Rated plate thickness for full width: 0.3-1.0mm

Maximum plate thickness : 2.0mm

Minimum leveling length: 50mm (can not below twice of the roller diameter)

Leveling speed: 0-10m/min

Leveling accuracy: ≤ 0.3mm/㎡（final accuracy subject to equipment testing)

Applicable objects: coils, sheets, flat parts, mirror sheets, etc.

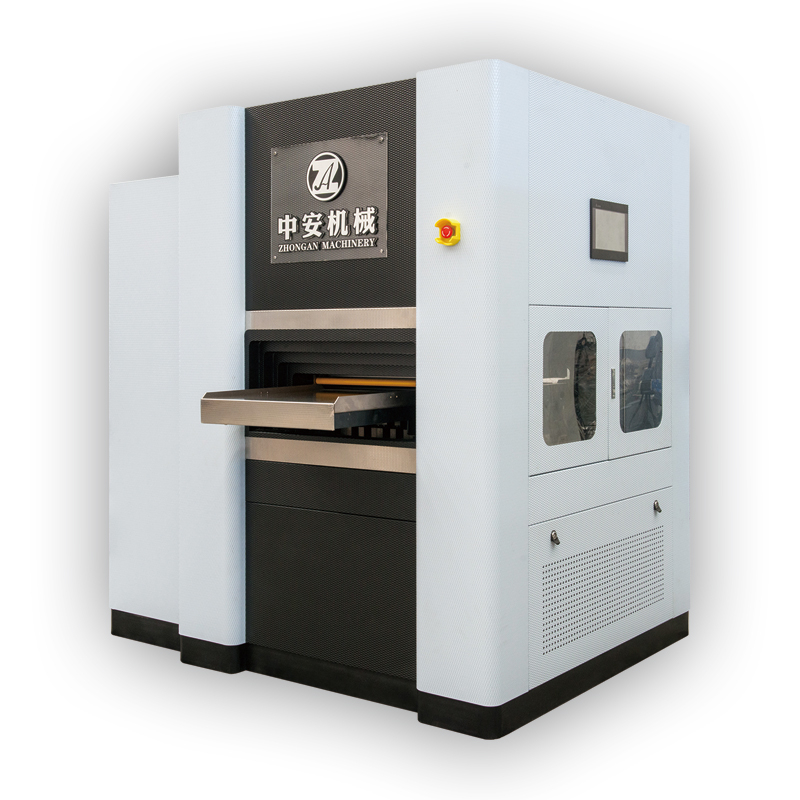

25 Series Hydraulic Precision Leveler - Zhongan

25 Series Hydraulic Precision Leveler Specifications：

Table for Leveled Width Range of 25 Series(Material Q235/Yield Strength 235MPa)
Thickness\Width	25-160-31	25-300-31	25-500-31
0.3-1.0	160	300	500
1.2	130	250	410
1.4	110	210	350
1.6	100	180	310
1.8	85	165	270
2.0	75	150	250
