10 Series Hydraulic Precision Leveler Manufacturer

10 Series Hydraulic Precision Leveler

10 Series Hydraulic Precision Leveler - Zhongan. Ideal for ultra-thin metal sheet leveling. Customizable based on sheet width, precision, and high efficiency.

Model:
Y10
Brand:
Zhongan Machinery
Roller Diameter (mm):
Φ10mm
Width (mm):
160, 300, 500, etc. (customizable according to product requirements)
Maximum Plate Thickness:
0.8mm
Leveling Speed:
0-10m/min

Quantity:
Availability:





Inquire

Leveler Description

Specifications

Catalogue

FAQ

10 Series Hydraulic Precision Leveler Description：

Parameters of 10 series leveling machines (suitable for ultra-thin materials)

Roller diameter (mm): Φ10mm

Width (mm): 160, 300, 500, etc. (customizable according to product requirements)

Number of rollers: upper 15 + 16 lower = 31 rollers

Rated plate thickness for full width: 0.1-0.3mm

Maximum plate thickness : 0.8mm

Minimum leveling length: 20mm (can not below twice of the roller diameter)

Leveling speed: 0-10m/min

Leveling accuracy: ≤ 0.3mm/㎡（final accuracy subject to equipment testing)

Applicable objects: foil, etc.

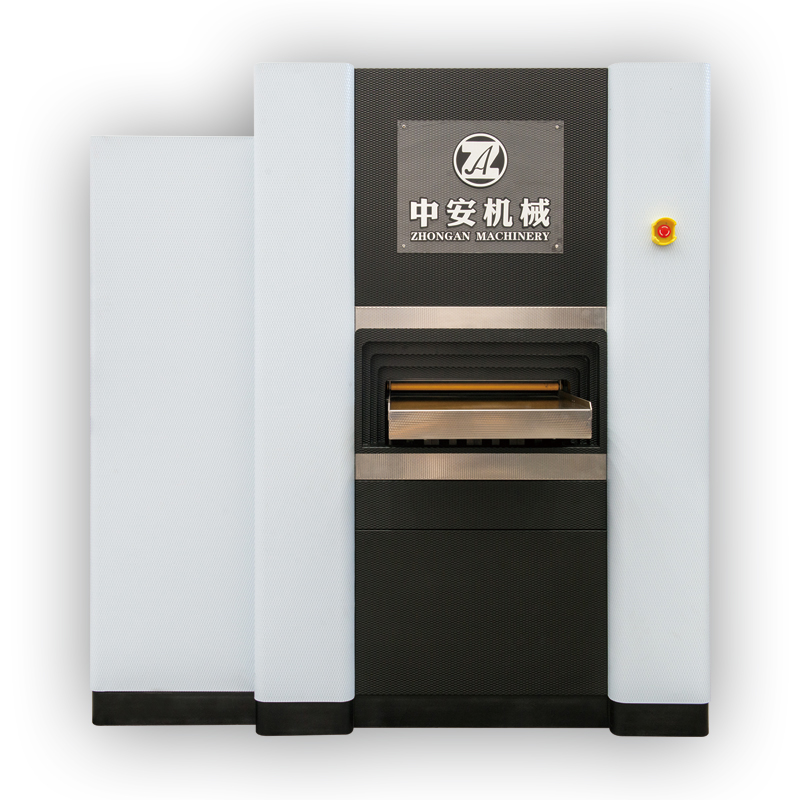

10 Series Hydraulic Precision Leveler - Zhongan

10 Series Hydraulic Precision Leveler Specifications：

Table for Leveled Width Range of 10 Series(Material Q235/Yield Strength 235MPa)
Thickness\Width	10-160-31	10-300-31	10-500-31
0.1-0.3	160	300	500
0.4	120	225	375
0.6	80	150	250
0.8	60	110	180
