Sheet Metal Flattening Machine

ZHONGAN manufactures hydraulic precision roller levelers for metal sheet leveling. Custom solutions are available for different sheet thicknesses and widths, direct from the factory.

Model:
Y200
Brand:
Zhongan Machinery
Roller Diameter (mm):
Φ200mm
Width (mm):
1300, 1600, 2100 ,2600, 3100 etc. (customizable according to product requirements)
Maximum Plate Thickness:
60.0mm
Leveling Speed:
0-10m/min

Quantity:
Availability:





Inquire

Leveler Description

Specifications

Catalogue

FAQ

Sheet Metal Flattening Machine Description：

Parameters of Sheet Metal Flattening Machine (suitable for thick plates)

Roller diameter (mm): Φ200mm

Width (mm): 1300, 1600, 2100 ,2600, 3100 etc. (customizable according to product requirements)

Number of rollers: upper 5 + 6 lower = 11 rollers

Rated plate thickness for full width: 10.0-30.0mm

Maximum plate thickness : 60mm

Minimum leveling length: 400mm (can not below twice of the roller diameter)

Leveling speed: 0-10m/min

Leveling accuracy: ≤ 0.3mm/㎡（final accuracy subject to equipment testing)

Applicable objects: coils, sheets, flat parts, mirror sheets, etc.

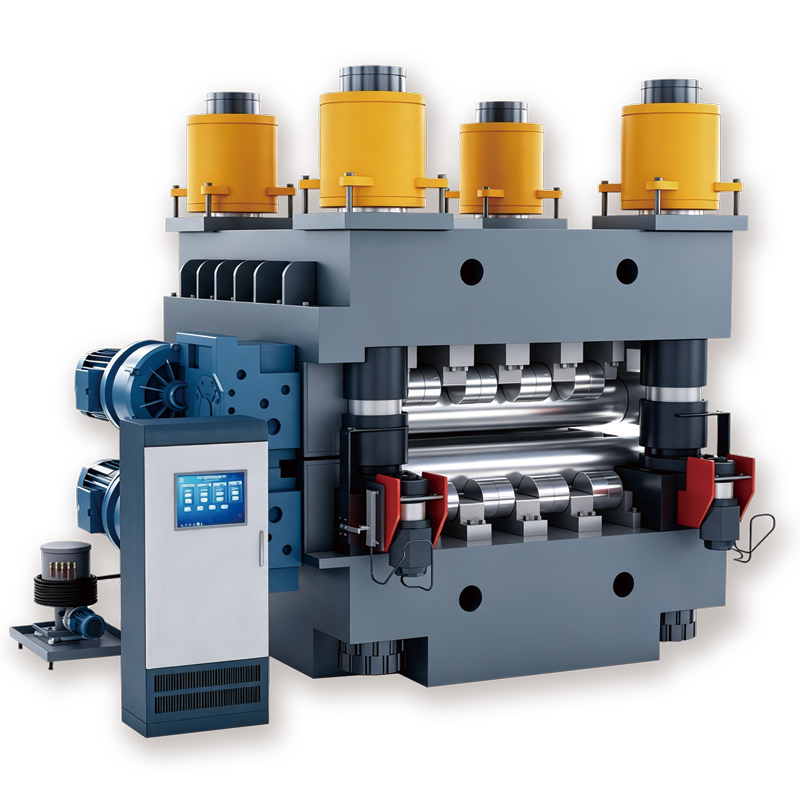

Sheet Metal Flattening Machine - Zhongan

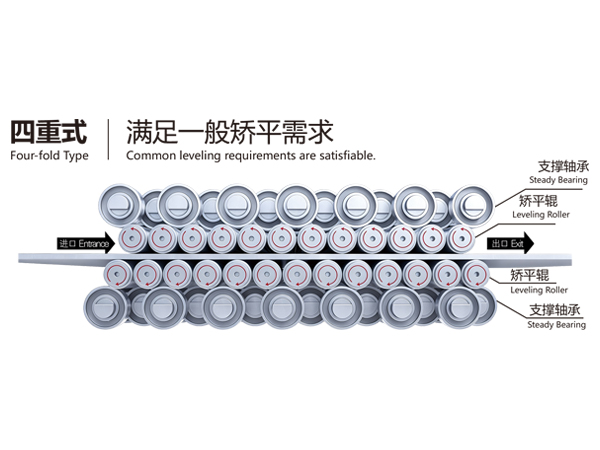

Four-fold Type Sheet Metal Flattening Machine

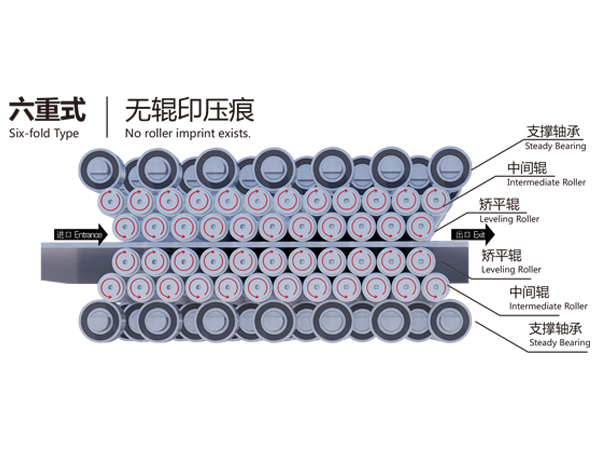

Six-fold Type Sheet Metal Flattening Machine

Sheet Metal Flattening Machine Specifications：

Table for Leveled Width Range of 200 Series(Material Q235/Yield Strength 235MPa)
Thickness\Width	200-1300-11	200-1600-11	200-2100-11	200-2600-11	200-3100-11
10.0-30.0	1300	1600	2100	2600	3100
35.0	1040	1280	1680	2080	2580
40.0	850	1050	1400	1700	2200
50.0	730	900	1200	1480	1980
60.0	650	800	1050	1300	1550
