Roller Leveler Machine

ZHONGAN Roller Leveler Machine delivers precise metal sheet leveling with hydraulic control. Customized for sheet thickness and width, manufactured directly by the source factory.

Model:
Y300
Brand:
Zhongan Machinery
Roller Diameter (mm):
Φ300mm
Width (mm):
1300, 1600, 2100 ,2600, 3100 etc. (customizable according to product requirements)
Maximum Plate Thickness:
80.0mm
Leveling Speed:
0-10m/min

Quantity:
Availability:





Inquire

Leveler Description

Specifications

FAQ

Roller Leveler Machine Description：

Parameters of 300 series leveling machines (suitable for thick plates)

Roller diameter (mm): Φ300mm

Width (mm): 1300, 1600, 2100 ,2600,3100 etc. (customizable according to product requirements)

Number of rollers: upper 4 + 5 lower = 9 rollers

Rated plate thickness for full width: 20.0-40.0mm

Maximum plate thickness : 80mm

Minimum leveling length: 600mm (can not below twice of the roller diameter)

Leveling speed: 0-10m/min

Leveling accuracy: ≤ 0.3mm/㎡（final accuracy subject to equipment testing)

Applicable objects: coils, sheets, flat parts, mirror sheets, etc.

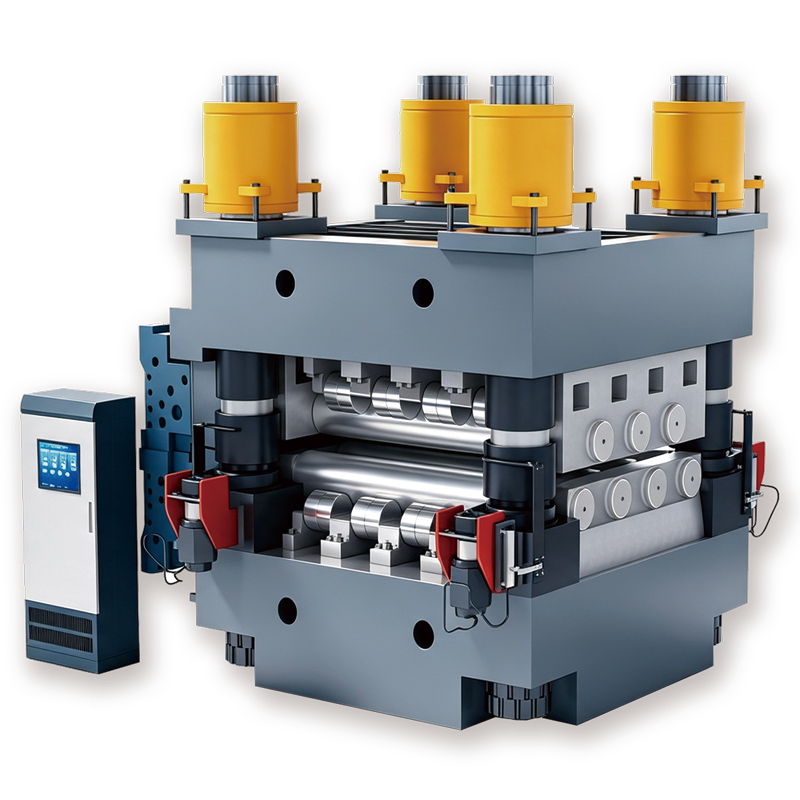

Roller Leveler Machine - Zhongan

Roller Leveler Machine Specifications：

Table for Leveled Width Range of 300 Series(Material Q235/Yield Strength 235MPa)
Thickness\Width	300-1300-9	300-1600-9	300-2100-9	300-2600-9	300-3100-9
20-40	1300	1600	2100	2600	3100
50	1040	1280	1680	2080	2580
60	850	1050	1400	1700	2200
70	730	900	1200	1480	1980
80	650	800	1050	1300	1550
