125 Series Hydraulic Precision Leveler Manufacturer

125 Series Hydraulic Precision Leveler

125 Series Hydraulic Precision Leveler - Zhongan. Ideal for thick metal plate leveling. Customizable to sheet width for superior accuracy and heavy-duty performance. Direct manufacturer.

Model:
Y125
Brand:
Zhongan Machinery
Roller Diameter (mm):
Φ125mm
Width (mm):
500, 1100, 1300, 1600, 2100 ,2600 etc. (customizable according to product requirements)
Maximum Plate Thickness:
40.0mm
Leveling Speed:
0-10m/min

Quantity:
Availability:





Inquire

Leveler Description

Specifications

Catalogue

FAQ

125 Series Hydraulic Precision Leveler Description：

Parameters of 125 series leveling machines (suitable for thick plates)

Roller diameter (mm): Φ125mm

Width (mm): 500, 1100, 1300, 1600, 2100 ,2600 etc. (customizable according to product requirements)

Number of rollers: upper 7 + 8 lower = 15 rollers

Rated plate thickness for full width: 5.0-20.0mm

Maximum plate thickness : 40mm

Minimum leveling length: 250mm (can not below twice of the roller diameter)

Leveling speed: 0-10m/min

Leveling accuracy: ≤ 0.3mm/㎡（final accuracy subject to equipment testing)

Applicable objects: coils, sheets, flat parts, mirror sheets, etc.

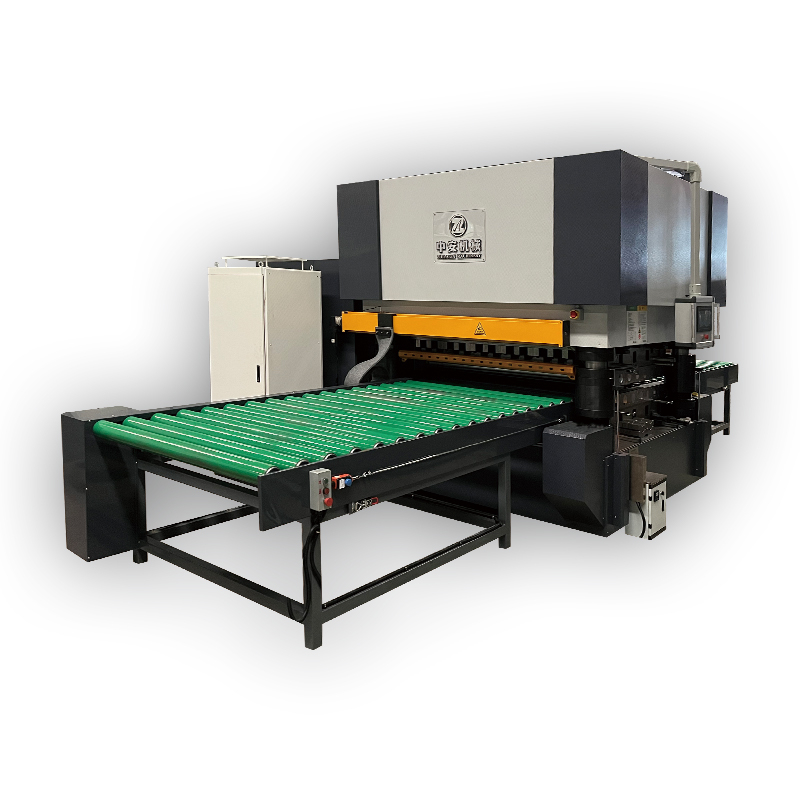

125 Series Hydraulic Precision Leveler - Zhongan

125 Series Hydraulic Precision Leveler Specifications：

Table for Leveled Width Range of 125 Series(Material Q235/Yield Strength 235MPa)
Thickness\Width	125-500-15	125-1100-15	125-1300-15	125-1600-15	125-2100-15	125-2600-15
5.0-20.0	500	1100	1300	1600	2100	2600
25.0	400	860	1040	1280	1680	2080
30.0	300	710	850	1050	1400	1700
35.0	270	600	730	900	1200	1450
40.0	240	520	640	800	1050	1300
