200 Series Hydraulic Precision Leveler Manufacturer

200 Series Hydraulic Precision Leveler

200 Series Hydraulic Precision Leveler - Zhongan. Heavy-duty hydraulic leveler for thick metal sheets. Customizable based on sheet width, ensuring precision, strength, and reliable operation.

Model:
Y200
Brand:
Zhongan Machinery
Roller Diameter (mm):
Φ200mm
Width (mm):
1100, 1300, 1600, 2100 ,2600 etc. (customizable according to product requirements)
Maximum Plate Thickness:
60.0mm
Leveling Speed:
0-10m/min

Quantity:
Availability:





Inquire

Leveler Description

Specifications

Catalogue

FAQ

200 Series Hydraulic Precision Leveler Description：

Parameters of 200 series leveling machines (suitable for thick plates)

Roller diameter (mm): Φ200mm

Width (mm): 1100, 1300, 1600, 2100 ,2600 etc. (customizable according to product requirements)

Number of rollers: upper 5 + 6 lower = 11 rollers

Rated plate thickness for full width: 10.0-35.0mm

Maximum plate thickness : 60mm

Minimum leveling length: 400mm (can not below twice of the roller diameter)

Leveling speed: 0-10m/min

Leveling accuracy: ≤ 0.3mm/㎡（final accuracy subject to equipment testing)

Applicable objects: coils, sheets, flat parts, mirror sheets, etc.

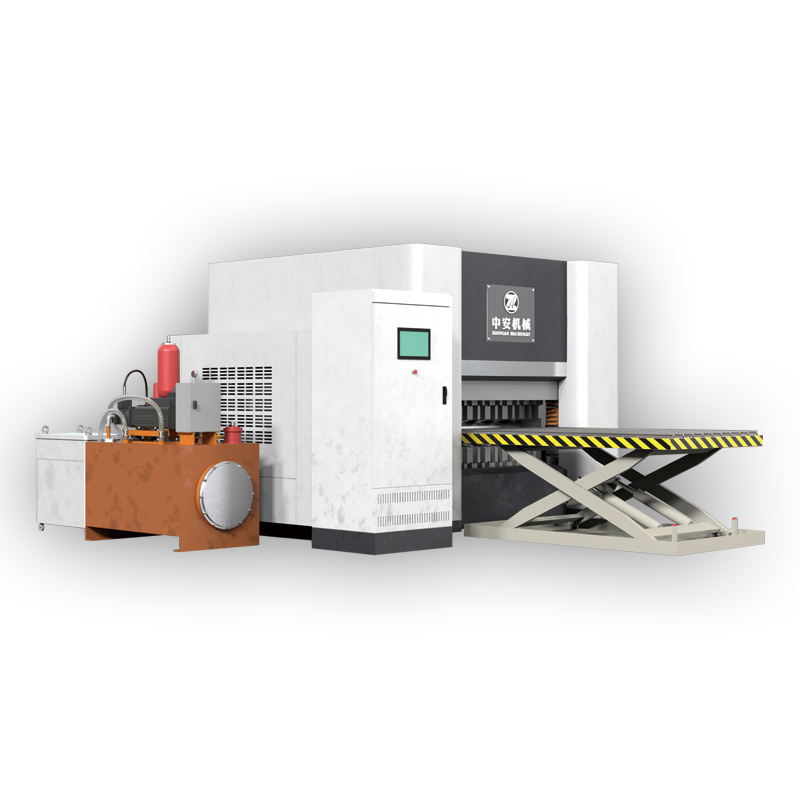

200 Series Hydraulic Precision Leveler - Zhongan

200 Series Hydraulic Precision Leveler Specifications：

Table for Leveled Width Range of 200 Series(Material Q235/Yield Strength 235MPa)
Thickness\Width	200-1100-11	200-1300-11	200-1600-11	200-2100-11	200-2600-11
10.0-35.0	1100	1300	1600	2100	2600
45.0	880	1040	1280	1680	2080
50.0	730	850	1050	1400	1700
55.0	620	730	900	1200	1480
60.0	550	650	800	1050	1300
