160 Series Hydraulic Precision Leveler Factory

160 Series Hydraulic Precision Leveler

160 Series Hydraulic Precision Leveler - Zhongan. Designed for thick metal plate leveling. Customizable to sheet width, delivering high precision and heavy-duty performance. Source manufacturer.

Model:
Y160
Brand:
Zhongan Machinery
Roller Diameter (mm):
Φ160mm
Width (mm):
500, 1100, 1300, 1600, 2100 ,2600 etc. (customizable according to product requirements)
Maximum Plate Thickness:
50.0mm
Leveling Speed:
0-10m/min

Quantity:
Availability:





Inquire

Leveler Description

Specifications

Catalogue

FAQ

160 Series Hydraulic Precision Leveler Description：

Parameters of 160 series leveling machines (suitable for thick plates)

Roller diameter (mm): Φ160mm

Width (mm): 500, 1100, 1300, 1600, 2100 ,2600 etc. (customizable according to product requirements)

Number of rollers: upper 6 + 7 lower = 13 rollers

Rated plate thickness for full width: 8.0-25.0mm

Maximum plate thickness : 50mm

Minimum leveling length: 320mm (can not below twice of the roller diameter)

Leveling speed: 0-10m/min

Leveling accuracy: ≤ 0.3mm/㎡（final accuracy subject to equipment testing)

Applicable objects: coils, sheets, flat parts, mirror sheets, etc.

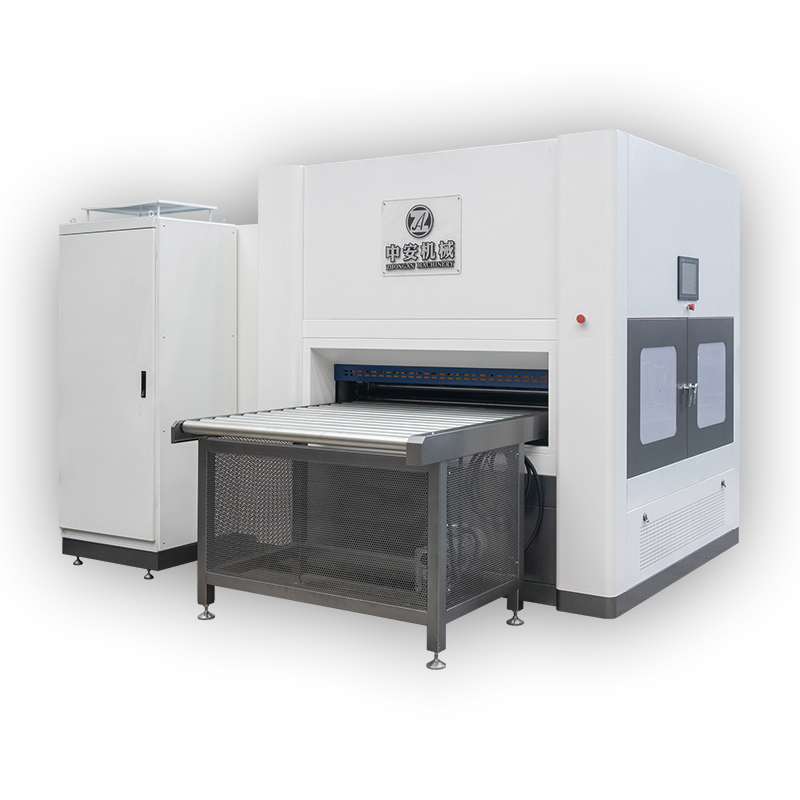

160 Series Hydraulic Precision Leveler - Zhongan

160 Series Hydraulic Precision Leveler Specifications：

Table for Leveled Width Range of 160 Series(Material Q235/Yield Strength 235MPa)
Thickness\Width	160-500-13	160-1100-13	160-1300-13	160-1600-13	160-2100-13	160-2600-13
8.0-25.0	500	1100	1300	1600	2100	2600
30.0	375	825	975	1200	1575	1950
35.0	300	660	780	960	1260	1560
40.0	250	550	650	800	1050	1300
45.0	200	460	540	675	900	1100
50.0	170	410	470	600	780	975
