G80 Series Mechanical CNC Precision Leveler Supplier

G80 Series Mechanical CNC Precision Leveler

Zhongan G80 Series CNC Mechanical Leveler uses 80mm rollers for precise leveling of medium-thick metal plates, customizable by width, source manufacturer delivering reliable performance and competitive pricing.

Model:
G80
Brand:
Zhongan Machinery
Roller Diameter (mm):
Φ80mm
Width (mm):
500, 1000, 1300, 1600, 2100, etc. (customizable according to product requirements)
Maximum Plate Thickness:
12.0mm
Leveling Speed:
0-10m/min

Quantity:
Availability:





Inquire

Leveler Description

Specifications

Catalogue

FAQ

G80 Series Mechanical CNC Precision Leveler Description：

Parameters of G80 series leveling machines (suitable for meduim and thick materials)

Roller diameter (mm): Φ80mm

Width (mm): 500, 1000, 1300, 1600,2100, etc. (customizable according to product requirements)

Number of rollers: upper 9 + 10 lower = 19 rollers

Rated plate thickness for full width: 2.0-6.0mm

Maximum plate thickness : 12.0mm

Minimum leveling length: 160mm (can not below twice of the roller diameter)

Leveling speed: 0-10m/min

Leveling accuracy: Around 0.5mm/㎡（final accuracy subject to equipment testing)

Applicable objects: Medium and heavy plate application industry, etc.

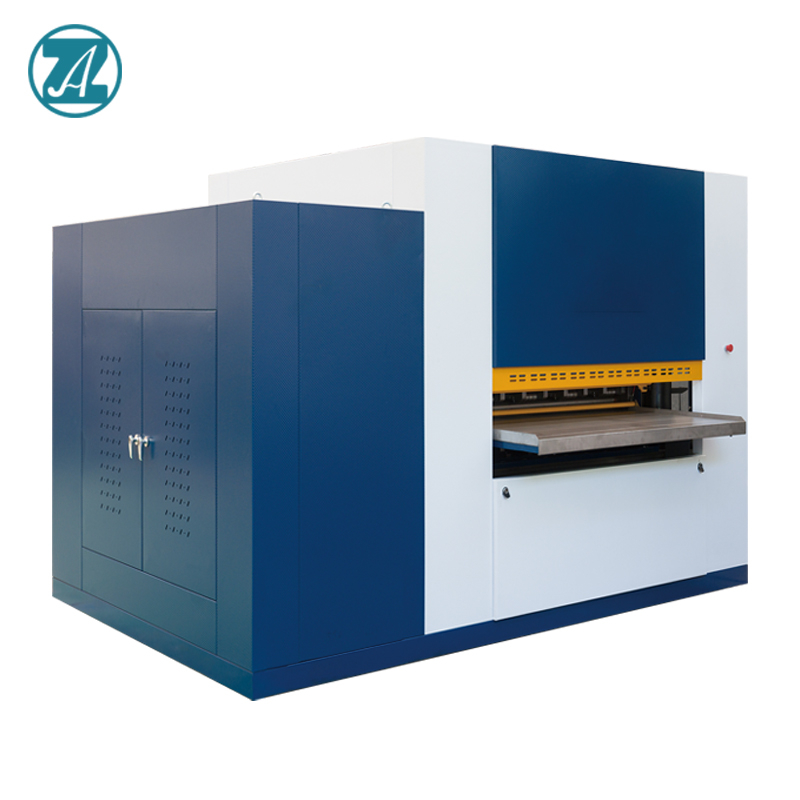

G80 Series Mechanical CNC Precision Leveler - Zhongan

G80 Series Mechanical CNC Precision Leveler Specifications：

Table for Leveled Width Range of G80 Series(Material Q235/Yield Strength 235MPa)
Thickness\Width	G80-500-19	G80-1000-19	G80-1300-19	G80-1600-19	G80-2100-19
2.0-6.0	500	1000	1300	1600	2100
8.0	400	800	1000	1280	1680
10.0	330	660	860	1060	1400
12.0	280	570	740	910	1200
