G125 Series Mechanical CNC Precision Leveler Factory

G125 Series Mechanical CNC Precision Leveler

G125 Series Mechanical CNC Leveler with 125mm rollers is ideal for medium-thick metal sheet leveling, customizable widths, manufactured by Zhongan for dependable performance and direct factory advantage.

Model:
G125
Brand:
Zhongan Machinery
Roller Diameter (mm):
Φ125mm
Width (mm):
500, 1100, 1600, 2100, 2600 etc. (customizable according to product requirements)
Maximum Plate Thickness:
24.0mm
Leveling Speed:
0-10m/min

Quantity:
Availability:





Inquire

Leveler Description

Specifications

Catalogue

FAQ

G125 Series Mechanical CNC Precision Leveler Description：

Parameters of G125 series leveling machines (suitable for meduim and thick materials)

Roller diameter (mm): Φ125mm

Width (mm): 500, 1100, 1600, 2100, 2600 etc. (customizable according to product requirements)

Number of rollers: upper 7 + 8 lower = 15 rollers

Rated plate thickness for full width: 5.0-12.0mm

Maximum plate thickness : 24mm

Minimum leveling length: 250mm (can not below twice of the roller diameter)

Leveling speed: 0-10m/min

Leveling accuracy: Around 0.5mm/㎡（final accuracy subject to equipment testing)

Applicable objects: Medium and heavy plate application industry, etc

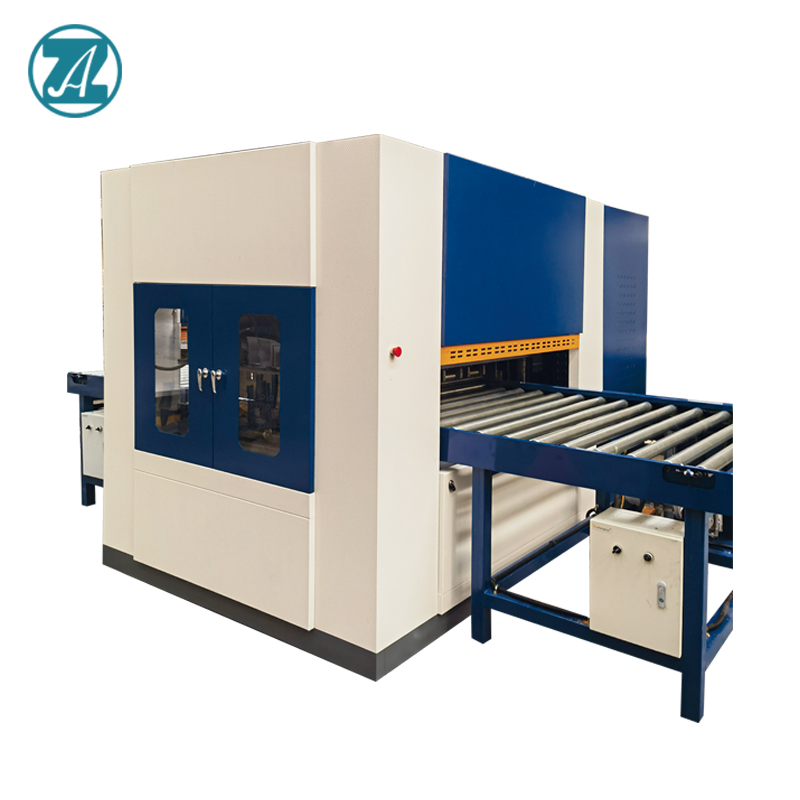

G125 Series Mechanical CNC Precision Leveler - Zhongan

G125 Series Mechanical CNC Precision Leveler Specifications：

Table for Leveled Width Range of G125 Series(Material Q235/Yield Strength 235MPa)
Thickness\Width	G125-500-15	G125-1100-15	G125-1600-15	G125-2100-15	G125-2600-15
5.0-12.0	500	1100	1600	2100	2600
15.0	400	860	1280	1680	2080
18.0	300	710	1050	1400	1700
21.0	270	600	900	1200	1450
24.0	240	520	800	1050	1300
