G100 Series Mechanical CNC Precision Leveler Manufacturer

G100 Series Mechanical CNC Precision Leveler

G100 Series Mechanical CNC Leveler with 100mm rollers is ideal for medium-thick metal sheet leveling, customizable widths, manufactured by Zhongan for reliable performance and direct factory advantage.

Model:
G100
Brand:
Zhongan Machinery
Roller Diameter (mm):
Φ100mm
Width (mm):
500, 1000, 1300, 1600, 2100 etc. (customizable according to product requirements)
Maximum Plate Thickness:
16.0mm
Leveling Speed:
0-10m/min

Quantity:
Availability:





Inquire

Leveler Description

Specifications

Catalogue

FAQ

G100 Series Mechanical CNC Precision Leveler Description：

Parameters of G100 series leveling machines (suitable for meduim and thick materials)

Roller diameter (mm): Φ100mm

Width (mm): 500, 1000, 1300, 1600, 2100 etc. (customizable according to product requirements)

Number of rollers: upper 8 + 9 lower = 17 rollers

Rated plate thickness for full width: 3.0-8.0mm

Maximum plate thickness : 16mm

Minimum leveling length: 200mm (can not below twice of the roller diameter)

Leveling speed: 0-10m/min

Leveling accuracy: Aroud 0.5mm/㎡（final accuracy subject to equipment testing)

Applicable objects: Medium and heavy plate application industry, etc.

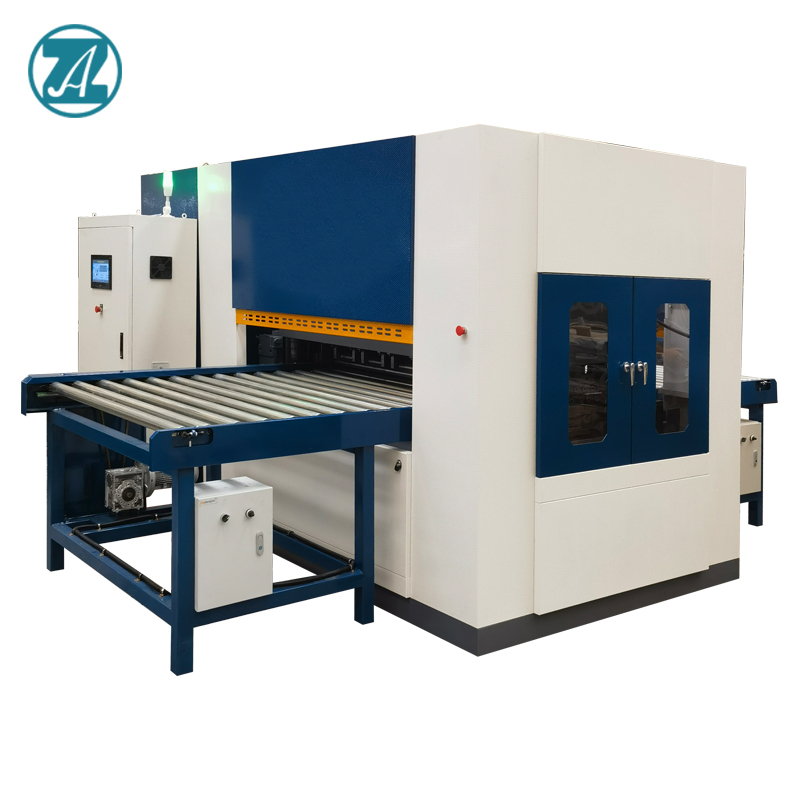

G100 Series Mechanical CNC Precision Leveler - Zhongan

G100 Series Mechanical CNC Precision Leveler Specifications：

Table for Leveled Width Range of G100 Series(Material Q235/Yield Strength 235MPa)
Thickness\Width	G100-500-17	G100-1000-17	G100-1300-17	G100-1600-17	G100-2100-17
3.0-8.0	500	1000	1300	1600	2100
9.0	400	820	1080	1300	1750
10.0	350	785	920	1140	1500
12.0	300	680	810	1000	1310
14.0	270	600	720	880	1150
16.0	250	550	650	800	1050
