G50 Series Mechanical CNC Precision Leveler Manufacturer

G50 Series Mechanical CNC Precision Leveler

G50 Series Mechanical CNC Precision Leveler by Zhongan features 50mm rollers for precise thin metal sheet leveling, customizable widths, factory-direct manufacturer ensuring durability and cost efficiency.

Model:
G50
Brand:
Zhongan Machinery
Roller Diameter (mm):
Φ50mm
Width (mm):
500, 800, 1300, 1600,etc. (customizable according to product requirements)
Maximum Plate Thickness:
5.0mm
Leveling Speed:
0-10m/min

Quantity:
Availability:





Inquire

Leveler Description

Specifications

Catalogue

FAQ

G50 Series Mechanical CNC Precision Leveler Description：

Parameters of G50 series leveling machines (suitable for thin materials)

Roller diameter (mm): Φ50mm

Width (mm): 500, 800, 1300, 1600,etc. (customizable according to product requirements)

Number of rollers: upper 9 + 10 lower = 19 rollers

Rated plate thickness for full width: 0.8-2.5mm

Maximum plate thickness : 5.0mm

Minimum leveling length: 100mm (can not below twice of the roller diameter)

Leveling speed: 0-10m/min

Leveling accuracy: Around 0.5mm/㎡（final accuracy subject to equipment testing)

Applicable objects: sheet metal processing industry, etc.

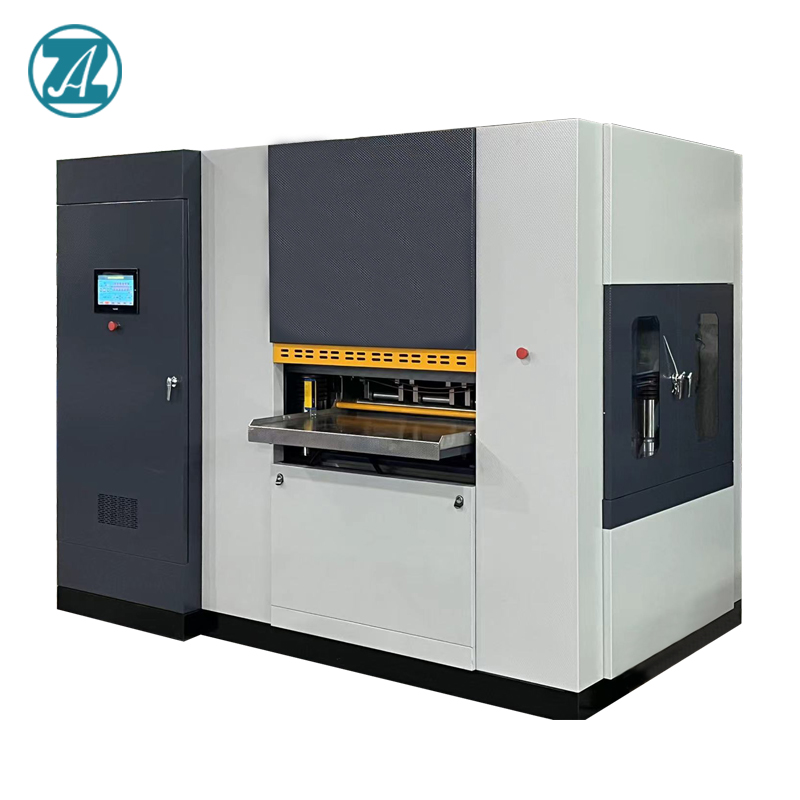

G50 Series Mechanical CNC Precision Leveler - Zhongan

G50 Series Mechanical CNC Precision Leveler Specifications：

Table for Leveled Width Range of G50 Series(Material Q235/Yield Strength 235MPa)
Thickness\Width	G50-500-19	G50-800-19	G50-1300-19	G50-1600-19
0.8-2.5	500	800	1300	1600
3.0	370	300	970	1200
3.5	300	480	780	960
4.0	250	400	650	800
4.5	210	340	550	680
5.0	180	300	480	600
