G40 Series Mechanical CNC Precision Leveler Supplier

G40 Series Mechanical CNC Precision Leveler

G40 Series CNC Mechanical Precision Leveler with 40mm rollers is ideal for thin sheet leveling, customizable by width, manufactured directly by Zhongan for consistent quality and dependable operation.

Model:
G40
Brand:
Zhongan Machinery
Roller Diameter (mm):
Φ40mm
Width (mm):
500, 1000, 1300 etc. (customizable according to product requirements)
Maximum Plate Thickness:
3.6mm
Leveling Speed:
0-10m/min

Quantity:
Availability:





Inquire

Leveler Description

Specifications

Catalogue

FAQ

G40 Series Mechanical CNC Precision Leveler Description：

Parameters of G40 series leveling machines (suitable for thin materials)

Roller diameter (mm): Φ40mm

Width (mm): 500, 1000, 1300 etc. (customizable according to product requirements)

Number of rollers: upper 9 + 10 lower = 19 rollers

Rated plate thickness for full width: 0.6-1.8mm

Maximum plate thickness : 3.6mm

Minimum leveling length: 80mm (can not below twice of the roller diameter)

Leveling speed: 0-10m/min

Leveling accuracy: Around 0.5mm/㎡（final accuracy subject to equipment testing)

Applicable objects: chassis/cabinet industry, etc.

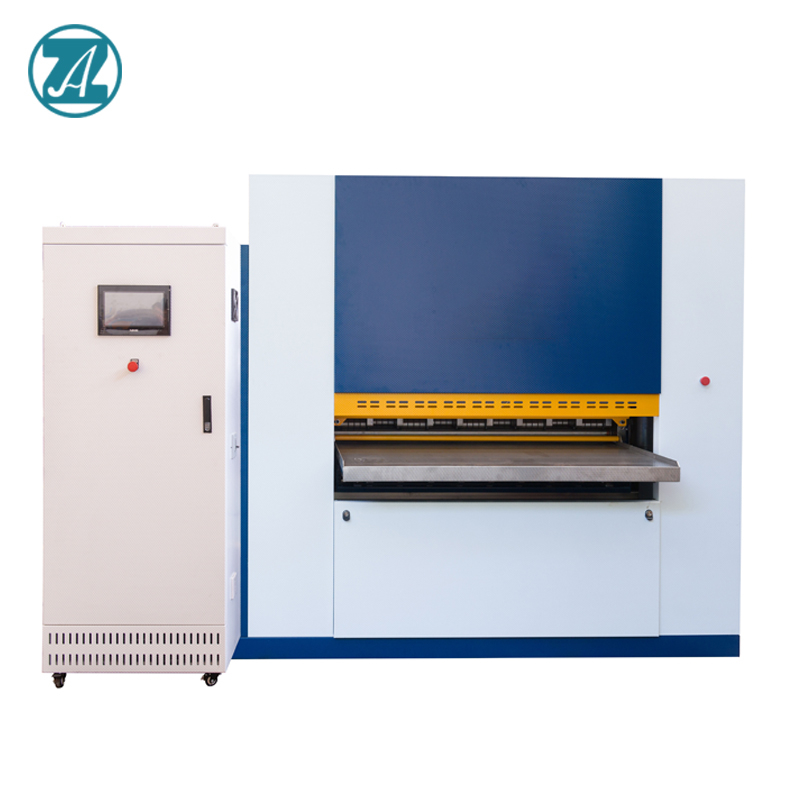

G40 Series Mechanical CNC Precision Leveler - Zhongan

G40 Series Mechanical CNC Precision Leveler Specifications：

Table for Leveled Width Range of G40 Series(Material Q235/Yield Strength 235MPa)
Thickness\Width	G40-500-19	G40-1000-19	G40-1300-19
0.6-1.8	500	1000	1300
2.1	410	830	1080
2.6	310	620	810
3.1	250	500	650
3.6	200	410	540
