80 Series Hydraulic Precision Leveler Manufacturer

80 Series Hydraulic Precision Leveler

80 Series Hydraulic Precision Leveler - Zhongan. Perfect for leveling medium-thick metal sheets. Customizable per sheet width, offering precision and long-lasting performance.

Model:
Y80
Brand:
Zhongan Machinery
Roller Diameter (mm):
Φ80mm
Width (mm):
500, 1000, 1300, 1600, 2100, 2600 etc. (customizable according to product requirements)
Maximum Plate Thickness:
20.0mm
Leveling Speed:
0-10m/min

Quantity:
Availability:





Inquire

Leveler Description

Specifications

Catalogue

FAQ

80 Series Hydraulic Precision Leveler Description：

Parameters of 80 series leveling machines (suitable for medium and thick plates)

Roller diameter (mm): Φ80mm

Width (mm): 500, 1000, 1300, 1600, 2100, 2600 etc. (customizable according to product requirements)

Number of rollers: upper 9 + 10 lower = 19 rollers

Rated plate thickness for full width: 2.0-8.0mm

Maximum plate thickness : 20mm

Minimum leveling length: 160mm (can not below twice of the roller diameter)

Leveling speed: 0-10m/min

Leveling accuracy: ≤ 0.3mm/㎡（final accuracy subject to equipment testing)

Applicable objects: coils, sheets, flat parts, mirror sheets, etc.

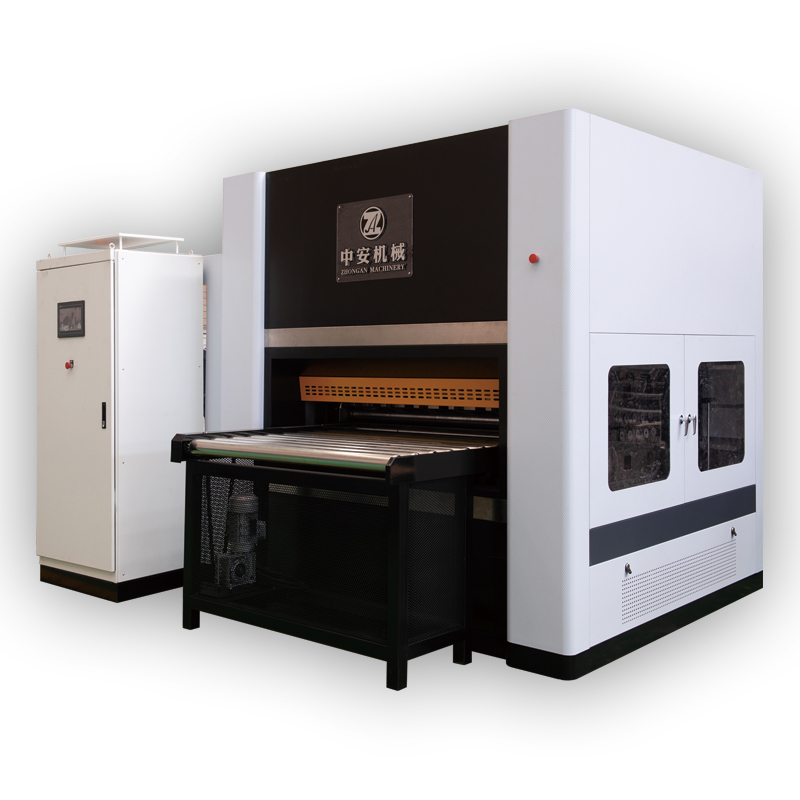

80 Series Hydraulic Precision Leveler - Zhongan

80 Series Hydraulic Precision Leveler Specifications：

Table for Leveled Width Range of 80 Series(Material Q235/Yield Strength 235MPa)
Thickness\Width	80-500-19	80-1000-19	80-1300-19	80-1600-19	80-2100-19	80-2600-19
2.0-8.0	500	1000	1300	1600	2100	2600
10.0	400	800	1000	1280	1680	2050
12.0	300	660	860	1060	1400	1700
14.0	250	570	740	910	1200	1485
16.0	200	500	650	800	1050	1300
18.0	180	430	560	700	930	1150
20.0	120	400	500	640	840	1000
