63 Series Hydraulic Precision Leveler Manufacturer

63 Series Hydraulic Precision Leveler

63 Series Hydraulic Precision Leveler - Zhongan. Designed for precise medium-thick metal sheet leveling. Customizable by sheet width for optimal performance. Source manufacturer.

Model:
Y63
Brand:
Zhongan Machinery
Roller Diameter (mm):
Φ63mm
Width (mm):
500, 800, 1300, 1600, 2100 etc. (customizable according to product requirements)
Maximum Plate Thickness:
13.0mm
Leveling Speed:
0-10m/min

Quantity:
Availability:





Inquire

Leveler Description

Specifications

Catalogue

FAQ

63 Series Hydraulic Precision Leveler Description：

Parameters of 63 series leveling machines (suitable for medium and thick plates)

Roller diameter (mm): Φ63mm

Width (mm): 500, 800, 1300, 1600, 2100 etc. (customizable according to product requirements)

Number of rollers: upper 10 + 11 lower = 21 rollers

Rated plate thickness for full width: 1.2-5.0mm

Maximum plate thickness : 13mm

Minimum leveling length: 126mm (can not below twice of the roller diameter)

Leveling speed: 0-10m/min

Leveling accuracy: ≤ 0.3mm/㎡（final accuracy subject to equipment testing)

Applicable objects: coils, sheets, flat parts, mirror sheets, etc.

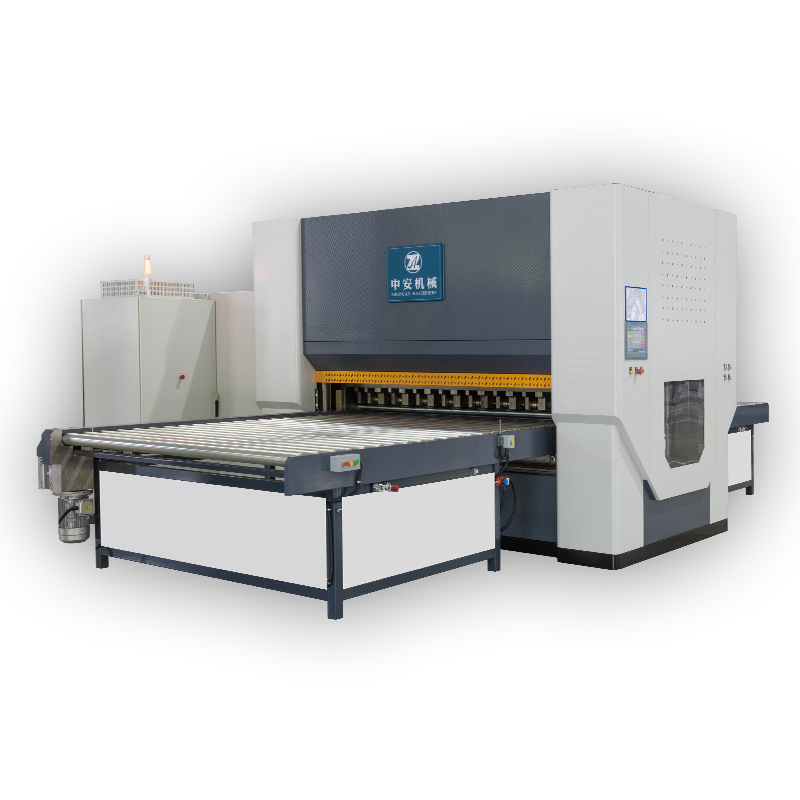

63 Series Hydraulic Precision Leveler - Zhongan

63 Series Hydraulic Precision Leveler Specifications：

Table for Leveled Width Range of 63 Series(Material Q235/Yield Strength 235MPa)
Thickness\Width	63-500-21	63-800-21	63-1300-21	63-1600-21	63-2100-21
1.2-5.0	500	800	1300	1600	2100
6.0	400	660	1080	1330	1700
8.0	300	500	810	1000	1300
10.0	250	400	650	800	1050
12.0	200	320	510	640	850
13.0	180	300	480	580	780
