100 Series Hydraulic Precision Leveler

100 Series Hydraulic Precision Leveler - Zhongan. Designed for leveling medium-thick metal sheets. Customizable per sheet width, ensuring precision and long-lasting reliability.

Model:
Y100
Brand:
Zhongan Machinery
Roller Diameter (mm):
Φ100mm
Width (mm):
500, 1000, 1300, 1600, 2100 ,2600 etc. (customizable according to product requirements)
Maximum Plate Thickness:
30.0mm
Leveling Speed:
0-10m/min

Quantity:
Availability:





Inquire

Leveler Description

Specifications

Catalogue

FAQ

100 Series Hydraulic Precision Leveler Description：

Parameters of 100 series leveling machines (suitable for medium and thick plates)

Roller diameter (mm): Φ100mm

Width (mm): 500, 1000, 1300, 1600, 2100 ,2600 etc. (customizable according to product requirements)

Number of rollers: upper 8 + 9 lower = 17 rollers

Rated plate thickness for full width: 3.0-10.0mm

Maximum plate thickness : 30mm

Minimum leveling length: 200mm (can not below twice of the roller diameter)

Leveling speed: 0-10m/min

Leveling accuracy: ≤ 0.3mm/㎡（final accuracy subject to equipment testing)

Applicable objects: coils, sheets, flat parts, mirror sheets, etc.

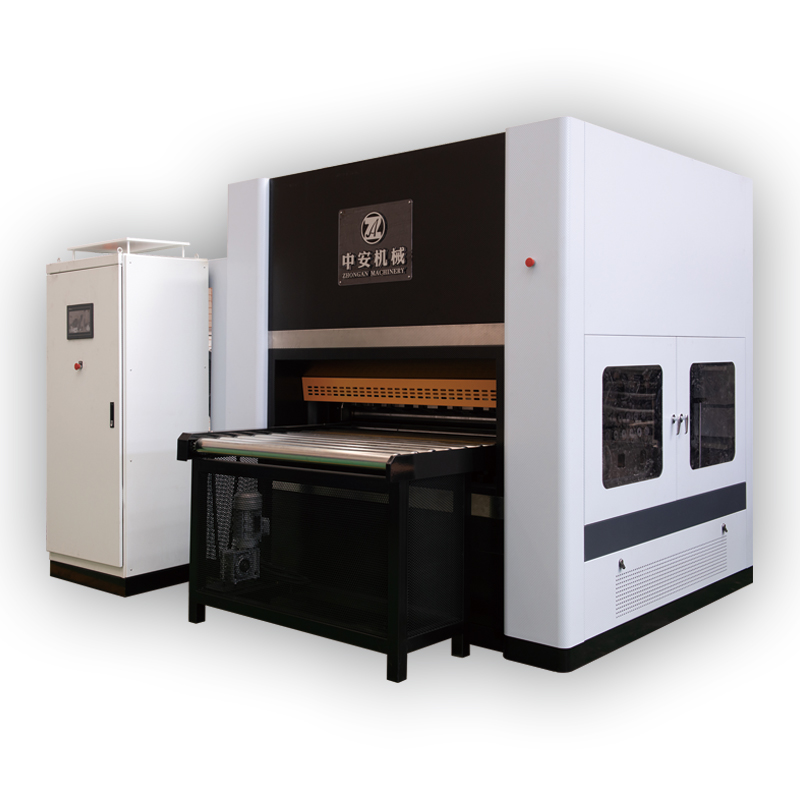

100 Series Hydraulic Precision Leveler - Zhongan

100 Series Hydraulic Precision Leveler Specifications：

Table for Leveled Width Range of 100 Series(Material Q235/Yield Strength 235MPa)
Thickness\Width	100-500-17	100-1000-17	100-1300-17	100-1600-17	100-2100-17	100-2600-17
3.0-10.0	500	1000	1300	1600	2100	2600
12.0	400	800	1080	1300	1750	2160
14.0	350	700	920	1140	1500	1850
16.0	300	625	810	1000	1310	1625
18.0	270	540	720	880	1150	1400
20.0	250	500	650	800	1050	1300
22.0	200	440	590	720	950	1180
24.0	180	400	530	660	875	1080
26.0	160	370	500	610	800	1000
28.0	140	340	450	570	750	900
30.0	120	300	420	530	700	850
