50 Series Hydraulic Precision Leveler Supplier

50 Series Hydraulic Precision Leveler

50 Series Hydraulic Precision Leveler - Zhongan. Designed for medium-thick metal sheet leveling. Customizable to sheet width for high precision and efficiency. Made by the source manufacturer.

Model:
Y50
Brand:
Zhongan Machinery
Roller Diameter (mm):
Φ50mm
Width (mm):
500, 800, 1300, 1600, 2100 etc. (customizable according to product requirements)
Maximum Plate Thickness:
10.0mm
Leveling Speed:
0-10m/min

Quantity:
Availability:





Inquire

Leveler Description

Specifications

Catalogue

FAQ

50 Series Hydraulic Precision Leveler Description：

Parameters of 50 series leveling machines (suitable for thin and medium plates)

Roller diameter (mm): Φ50mm

Width (mm): 500, 800, 1300, 1600, 2100 etc. (customizable according to product requirements)

Number of rollers: upper 11 + 12 lower = 23 rollers

Rated plate thickness for full width: 0.8-3.0mm

Maximum plate thickness : 10mm

Minimum leveling length: 100mm (can not below twice of the roller diameter)

Leveling speed: 0-10m/min

Leveling accuracy: ≤ 0.3mm/㎡（final accuracy subject to equipment testing)

Applicable objects: coils, sheets, flat parts, mirror sheets, etc.

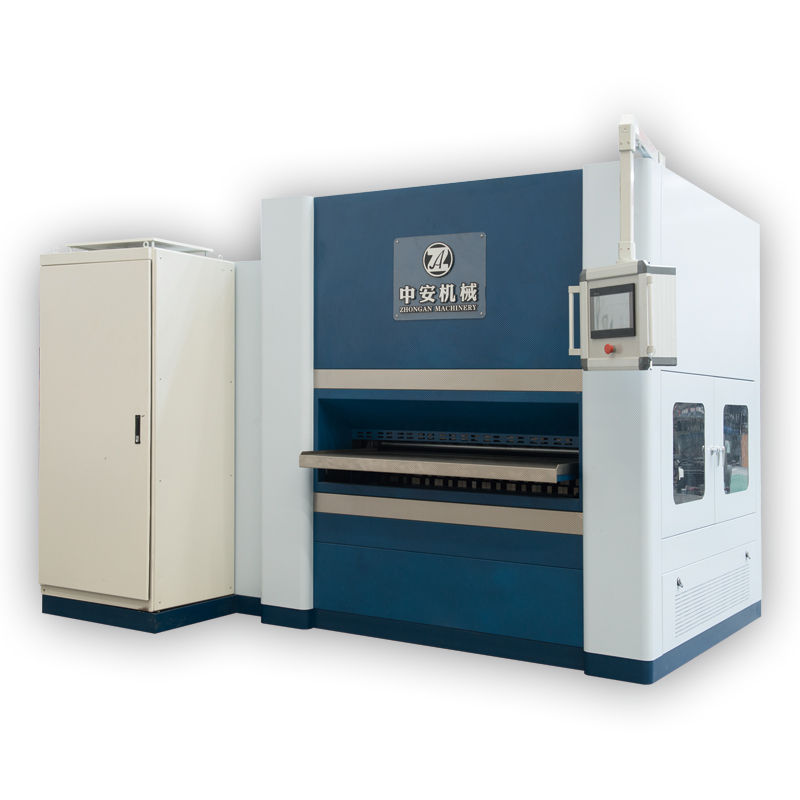

50 Series Hydraulic Precision Leveler - Zhongan

50 Series Hydraulic Precision Leveler Specifications：

Table for Leveled Width Range of 50 Series(Material Q235/Yield Strength 235MPa)
Thickness\Width	50-500-23	50-800-23	50-1300-23	50-1600-23	50-2100-23
0.8-3.0	500	800	1300	1600	2100
4.0	370	600	970	1200	1500
6.0	250	400	650	800	1050
8.0	180	300	480	600	750
10.0	130	230	380	480	600
