G200 Series Mechanical CNC Precision Leveler Supplier

G200 Series Mechanical CNC Precision Leveler

G200 Series CNC Mechanical Precision Leveler with 200mm rollers is designed for thick metal plate leveling, customizable widths, produced by Zhongan as a direct manufacturer for consistent quality.

Model:
G200
Brand:
Zhongan Machinery
Roller Diameter (mm):
Φ200mm
Width (mm):
1100, 1300, 1600, 2100 ,2600 etc. (customizable according to product requirements)
Maximum Plate Thickness:
40.0mm
Leveling Speed:
0-10m/min

Quantity:
Availability:





Inquire

Leveler Description

Specifications

Catalogue

FAQ

G200 Series Mechanical CNC Precision Leveler Description：

Parameters of G200 series leveling machines (suitable for thick materials)

Roller diameter (mm): Φ200mm

Width (mm):1100, 1300, 1600, 2100 ,2600 etc. (customizable according to product requirements)

Number of rollers: upper 5 + 6 lower = 11 rollers

Rated plate thickness for full width: 10.0-20.0mm

Maximum plate thickness : 40mm

Minimum leveling length: 400mm (can not below twice of the roller diameter)

Leveling speed: 0-10m/min

Leveling accuracy: Around 0.5mm/㎡（final accuracy subject to equipment testing)

Applicable objects: Heavy plate application industry, etc

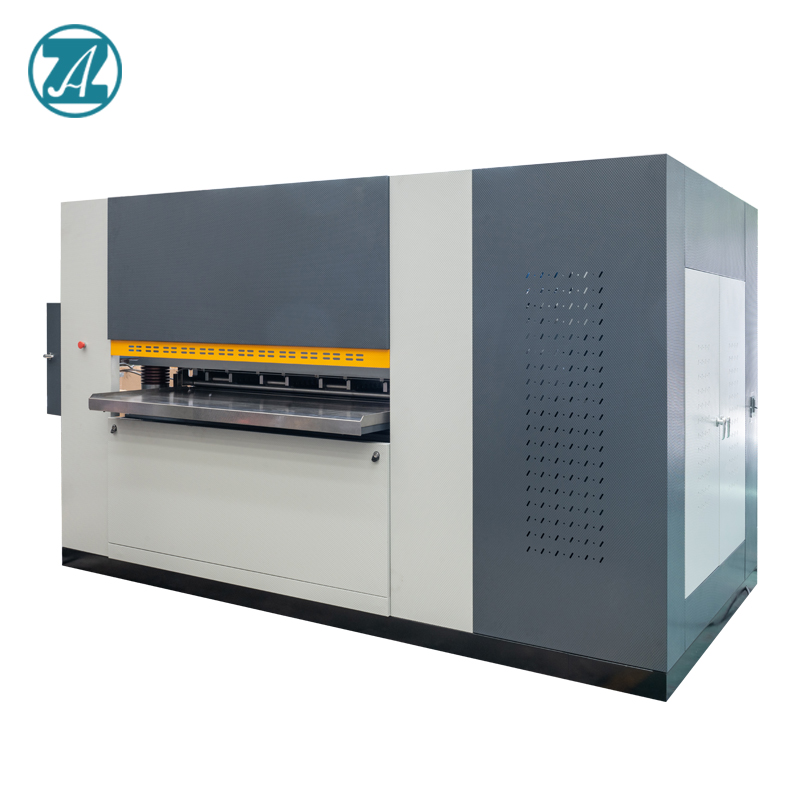

G200 Series Mechanical CNC Precision Leveler - Zhongan

G200 Series Mechanical CNC Precision Leveler Specifications：

Table for Leveled Width Range of G200 Series(Material Q235/Yield Strength 235MPa)
Thickness\Width	G200-1100-11	G200-1300-11	G200-1600-11	G200-2100-11	G200-2600-11
10.0-20.0	1100	1300	1600	2100	2600
25.0	880	1040	1280	1680	2080
30.0	730	850	1050	1400	1700
35.0	620	730	900	1200	1480
40.0	550	650	800	1050	1300

G200 Series Mechanical CNC Precision Leveler Catalogue：

Mechanical CNC Precision Leveler Catalogue - Zhongan Machinery.pdf

G200 Series Mechanical CNC Precision Leveler FAQ：

Q1: What flatness tolerance can your precision leveler achieve?

A: Around 0.5mm/㎡ on standard cold-rolled steel, with full stress relief.

Q2: Can your flattening machine handle high-strength steel?

A: Yes, our straightening machine processes materials up to 1,100 MPa yield strength.

Q3: Can the straightening machine be customized?

A: Yes, over 70% of our precision leveler orders are custom-built to your width and thickness specs.

Q4: What is the lead time for a flattening machine?

A: 60-120days according to the machine.ZHONGAN never sales Inventory machines.

Q5: How do you support a straightening machine after export?

A: Remote diagnosis within 2 hours, plus air-express spare parts for your flattening machine.

Related Products

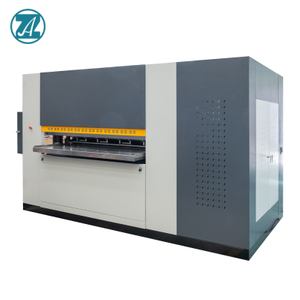

G160 Series Mechanical CNC Precision Leveler
