G160 Series Mechanical CNC Precision Leveler Manufacturer

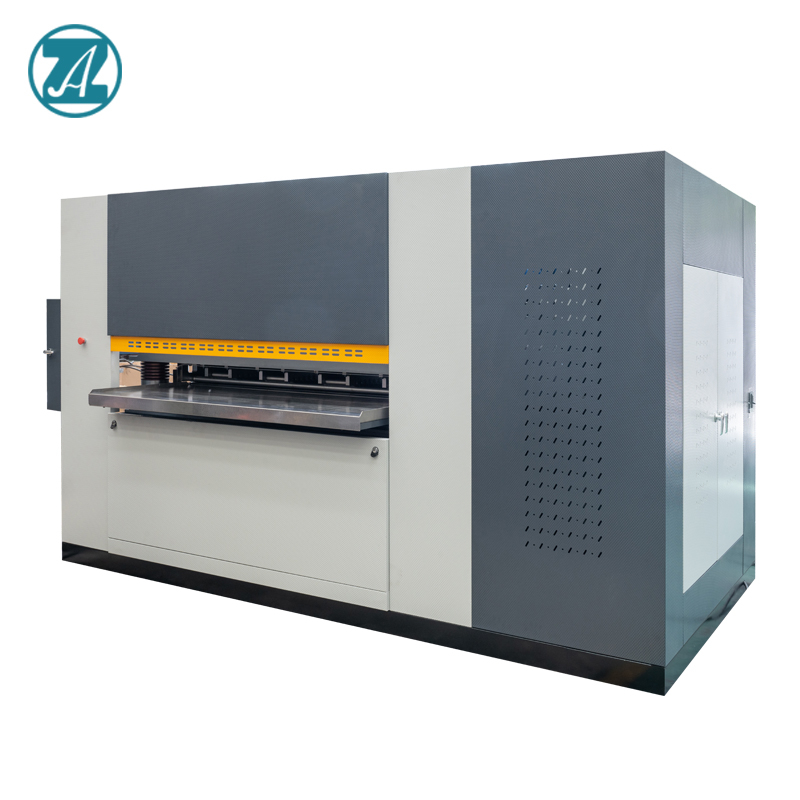

G160 Series Mechanical CNC Precision Leveler

G160 Series Mechanical CNC Precision Leveler by Zhongan features 160mm rollers for heavy-duty thick metal plate leveling, customizable widths, factory-direct manufacturer ensuring strength and cost efficiency.

Model:
G160
Brand:
Zhongan Machinery
Roller Diameter (mm):
Φ160mm
Width (mm):
500, 1100, 1600, 2100, 2600 etc. (customizable according to product requirements)
Maximum Plate Thickness:
32.0mm
Leveling Speed:
0-10m/min

Quantity:
Availability:





Inquire

Leveler Description

Specifications

Catalogue

FAQ

G160 Series Mechanical CNC Precision Leveler Description：

Parameters of G160 series leveling machines (suitable for thick materials)

Roller diameter (mm): Φ160mm

Width (mm): 500, 1100, 1600, 2100, 2600 etc. (customizable according to product requirements)

Number of rollers: upper 6 + 7 lower = 13 rollers

Rated plate thickness for full width: 8.0-16.0mm

Maximum plate thickness : 32mm

Minimum leveling length: 320mm (can not below twice of the roller diameter)

Leveling speed: 0-10m/min

Leveling accuracy: Around 0.5mm/㎡（final accuracy subject to equipment testing)

Applicable objects: Heavy plate application industry, etc

G160 Series Mechanical CNC Precision Leveler - Zhongan

G160 Series Mechanical CNC Precision Leveler Specifications：

Table for Leveled Width Range of G160 Series(Material Q235/Yield Strength 235MPa)
Thickness\Width	G160-500-13	G160-1100-13	G160-1600-13	G160-2100-13	G160-2600-13
8.0-16.0	500	1100	1600	2100	2600
20.0	375	825	1200	1575	1950
25.0	300	660	960	1260	1560
30.0	250	550	800	1050	1300
32.0	200	460	675	900	1100

G160 Series Mechanical CNC Precision Leveler Catalogue：

Mechanical CNC Precision Leveler Catalogue - Zhongan Machinery.pdf

G160 Series Mechanical CNC Precision Leveler FAQ：

Q1: What flatness tolerance can your precision leveler achieve?

A: Around 0.5mm/㎡ on standard cold-rolled steel, with full stress relief.

Q2: Can your flattening machine handle high-strength steel?

A: Yes, our straightening machine processes materials up to 1,100 MPa yield strength.

Q3: Can the straightening machine be customized?

A: Yes, over 70% of our precision leveler orders are custom-built to your width and thickness specs.

Q4: What is the lead time for a flattening machine?

A: 60-120days according to the machine.ZHONGAN never sales Inventory machines.

Q5: How do you support a straightening machine after export?

A: Remote diagnosis within 2 hours, plus air-express spare parts for your flattening machine.

Related Products

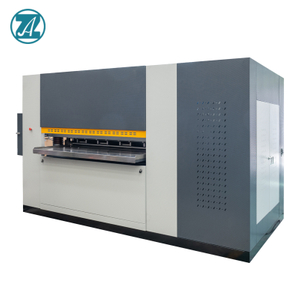

G200 Series Mechanical CNC Precision Leveler
